| مكان المنشأ: | صنع في الصين |
|---|---|
| اسم العلامة التجارية: | KBZE |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | 237017A1 ER136135 |
| الحد الأدنى لكمية: | أمر محاكمة مقبول |
| الأسعار: | DIRECTLY FACTORY PRICE |
| تفاصيل التغليف: | حقيبة PP وصندوق كرتوني |
| وقت التسليم: | 3-5DAYS بعد تلقي الدفع (أيام العمل) |
| شروط الدفع: | / تي تي، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 50000 مجموعة / أسبوع |
| مادة: | فُولاَذ | لون: | أسود |
|---|---|---|---|
| جودة: | تصنيع المعدات الأصلية | حالة: | جديد 100% |
| المرونة: | مرنة وسهلة التركيب | طلب: | حفارة |
| متانة: | طويلة الأمد وموثوقة | التوافق: | حالة جون دير |
| رقم OEM: | 237017A1 ER136135 | ||
| إبراز: | John Deere brake disc excavator part,590SL excavator brake disc,Case 237017A1 brake disc replacement,590SL excavator brake disc,Case 237017A1 brake disc replacement |
||

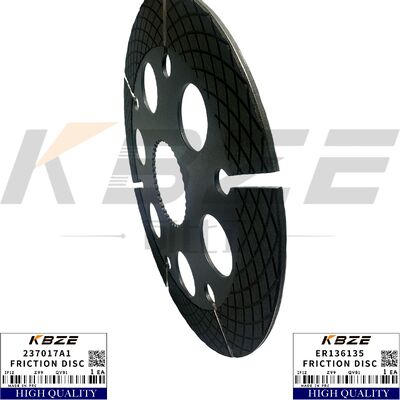

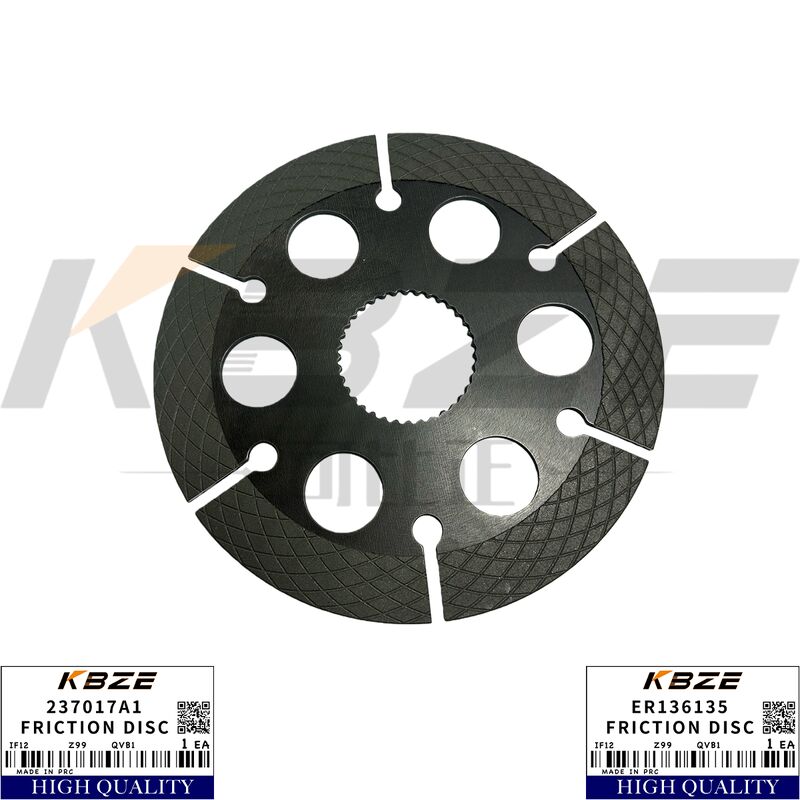

CASE 237017A1 JOHN DEERE ER136135 BRAKE DISC FOR 590SL, 590SM, 590L MACHINERY EQUIPMENT
Product Details

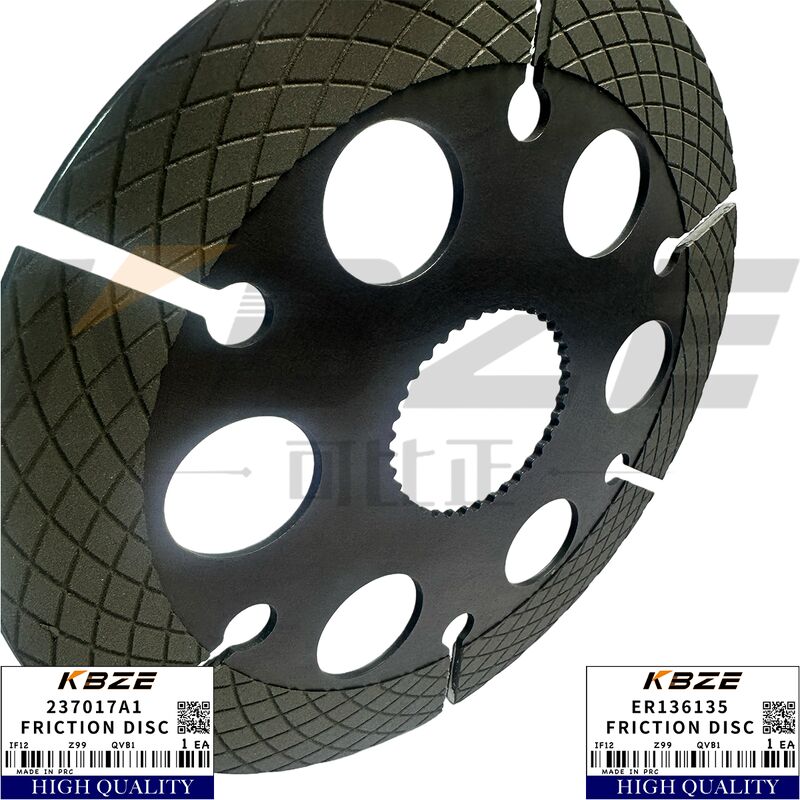

PRODUCT SHOWS:
PRODUCT SKETCH:
| Pos. | Part No | Qty | Parts name | Comments |
| . . | 127599A3 | [1] | AXLE, REAR | CAS AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-4, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 127599A5, Includes: Ref. 1 - 22 Superseded by part number: 127599A5 |
| . . | 127599A5 | [1] | AXLE, REAR | CAS AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-5A, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, Includes: Ref. 1 - 22 |
| 1 | 237017A1 | [4] | BRAKE DISC | CAS DISC - brake |
| 2 | 237018A1 | [2] | FRICTION WASHER | CAS PLATE - friction, inner |
| 3 | 237019A1 | [2] | LARGE PLATE | CAS PLATE - piston |
| 4 | 864-8016 | [18] | HEX SOC SCREW,M8 x 16mm, Cl 8.8 | CAS SCREW, Hex Soc Hd, M8 x 16, 8.8 Superseded by part number: 14306221 |
| 5 | 196076A1 | [2] | FLANGE | CAS - inner |
| 6 | 190449A1 | [2] | FLANGE | CAS - outer |
| 7 | 190499A1 | [6] | SPLIT PIN | CAS SPACER - split, 18 x 20 mm, no longer sold separately, order 248071A1 kit below |
| 8 | 190496A1 | [12] | BUSHING | CAS - spacer, no longer sold separately, order 248071A1 kit below |
| 9 | 190450A1 | [6] | WASHER | CAS - flat, special |
| 10 | 814-6035 | [6] | BOLT,Hex, M6 x 1 x 35mm, Cl 8.8 | CAS Superseded by part number: 86977789 |
| 11 | 237026A1 | [6] | SPRING | CAS - outer |
| 12 | 196078A1 | [2] | O-RING,9.541" ID x 0.14" Width | CAS - small |
| 13 | 196079A1 | [2] | PISTON | CAS - brake |
| 14 | 238-8274 | [2] | O-RING,0.139" Thk x 9.984" ID, -274, Cl 8, 90 Duro | CAS (Replaces 196080A1) |
| 15 | 190447A1 | [6] | SPLIT PIN | CAS PIN - split, 6 x 14 mm |
| 16 | 237020A1 | [2] | LARGE PLATE | CAS PLATE - friction, outer |
| 17 | 196082A1 | [2] | SLEEVE | CAS - splined |
| 18 | 196083A1 | [2] | HALF SHAFT | CAS SHAFT - splined |
| 19 | 864-6035 | [6] | HEX SOC SCREW,M6 x 35mm, Cl 8.8 | CAS BOLT - hex socket, 6 - 1.0 x 35 mm Superseded by part number: 14305624 |
| 20 | 190500A1 | [6] | COVER | CAS - spring |
| 21 | 237025A1 | [6] | SPRING | CAS - inner |
| 22 | 192911A1 | [2] | SHIM | CAS - piston |
| 23 | 329475A1 | [1] | CUTTER | CAS AUGER; Right-Hand, Oil; Includes Weld-On Clamp and 863-6020 Bolt; Also Includes Welded on Drive Coupling |
| 24 | 329476A1 | [1] | AUGER | CAS Left-Hand, Oil; Includes Weld-On Clamp and 863-6020 Bolt; Also Includes Welded on Drive Coupling |
| 25 | 863-6020 | [2] | HEX SOC SCREW,M6 x 20mm, Cl 12.9 | CAS SCREW, Hex Socket, M6 x 20, 12.9 Superseded by part number: 86512135 |
| . . | 248-71A1 | [1] | SERVICE KIT | CAS KIT brake, self adjuster, Includes Ref. 7 spacer and Ref. 8 bushing, plus an instruction sheet |
